Description

Sed-A, the world first sedation monitor simulator

Designed for anesthesiologists and Masimo Sedline^® current or future users, Sed-A offers an unparalleled training experience. Only the Sed-A enables trainees to practice and master both common and rare clinical scenarios, while leveraging the full power of brain function monitors.

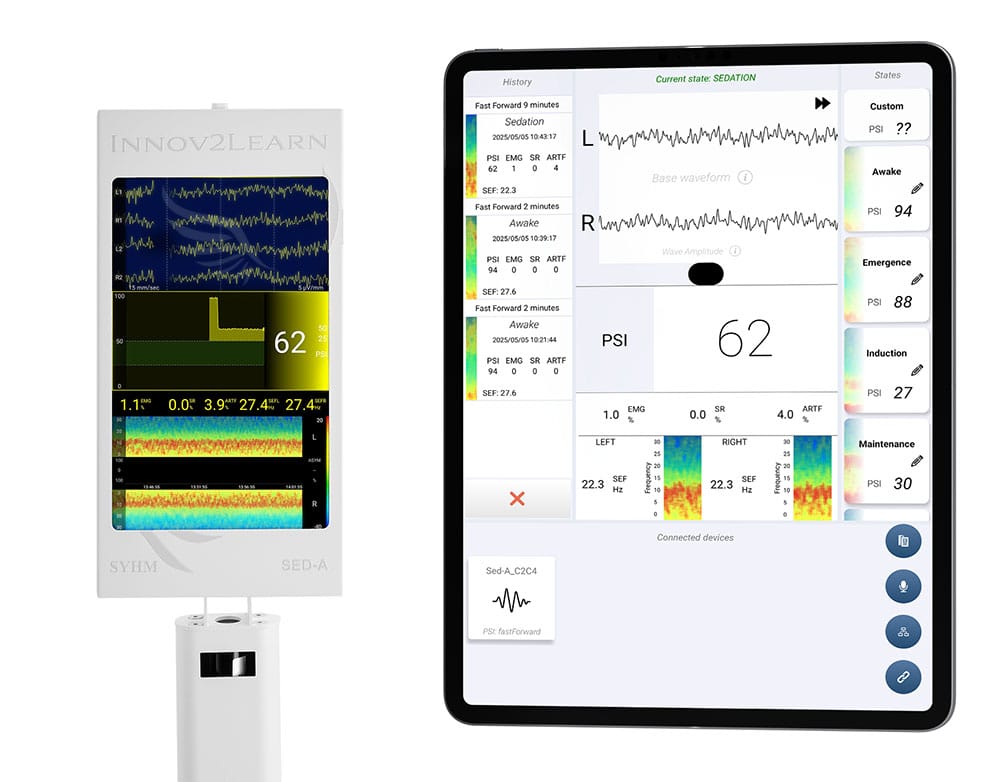

From a phone or a tablet , use Innov2learn’s control APPlication to select the patient state to simulate with a single click.

Create you own states and control each single parameter including the EEG spectrum.

Our expertly developed app provides full control over realistic simulations of diverse patient states and EEG signals, allowing for effective training.

You can also create custom states, signals and scenarios to match your specific educational needs.

With the innovative fast-forward feature, accelerate simulation time to enhance learning efficiency without missing critical details.

USB-C

The device operates from a USB-C adapter or on battery

Wireless

The Sed-A simulate is controlled wirelessly via Bluetooth BLE, via a provided tablet user smartphone

No need for Wifi

The device operates offline, with no Wifi connection necessary

Package also includes

1. Control tablet
2. USB-C charger
3. 2-meter USB-C charging cable
4. Quick start guide.
5. Carrying case Nanuk 991

Features:

• Patient State set provided
• Patient State creation and customizaton
• Cloud-based state set backup and restore
• L1,R1,L2,R2 and spectrum synthesis
• Customizable state transition periods
• Suppression Artifacts
• Simulation pause and fast forward
• Command history panel
• Software upgrades from the interface

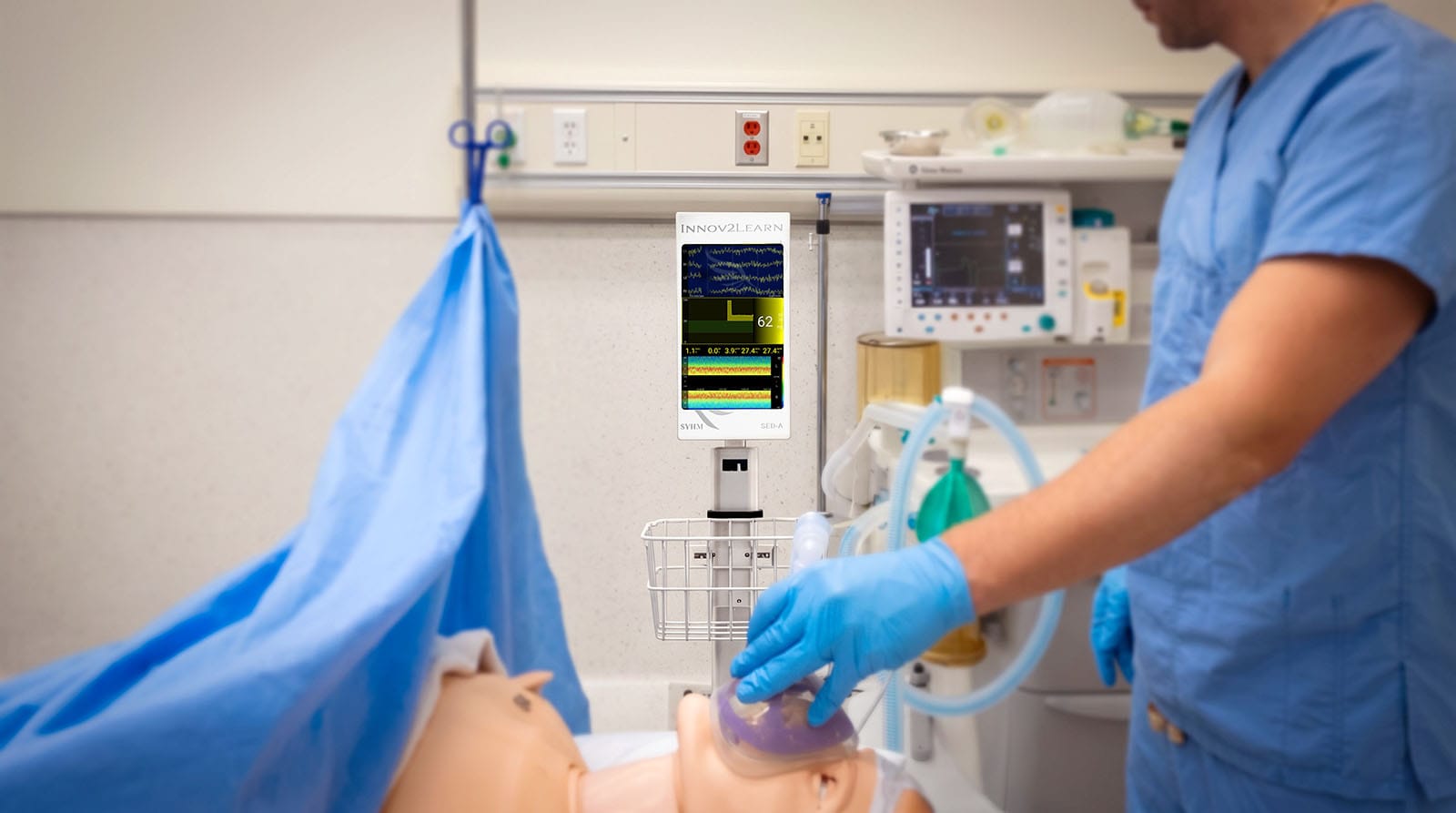

The Sed-A comes on a medical rolling stand with optional mount capability, ensuring seamless integration into all training environments.

Rolling stand specifications

• Height Adjustable Stand with Handle Included
• 5 Heavy-Duty Locking Casters
• Lockable Tablet Enclosure Tilts 360°
• Enclosure Can be Displayed Horizontally or Vertically
• Height Range Min. x Max.: 42.0″ x 59.0″
• Base Diameter: 17.7″
